DJ101IA-07A Detailed parameters
| DJ101IA-07A 基本参数 |
| 制造商(Productor) 群创/Innolux |
| 产品型号(MODEL) DJ101IA-07A |
| 屏尺寸(Size) 7寸液晶屏 |
| 分辨率(Resolution) 1280(RGB)×720, WXGA, 145PPI |
| 分辨率简称(Resolution Name) WXGA |
| 显示比例(Display scale) 16：10 |
| 像素排列(Pixel Arrangement) RGB垂直条状 |
| 点距(Pixel Pitch) 0.05825×0.17475 mm |
| 产品组成(Panel Composition) 液晶屏 |
| 面板类型(Technology) a-Si TFT-LCD |
| 主要用途(Applications) 汽车中控，车载电子，工业设备，军工，宽温环境 |
| 显著特征(Panel Features) 【灰阶可选】, 【白光LED】, 【翻转显示】, 【雾面】, |
| DJ101IA-07A光电参数 |
| 显示模式(Display mode) AAS，常黑显示，透射式 |
| 亮度(Luminance) 750 cd/m² (Typ.) |
| 对比度(Contrast Ratio) 1000:1 (Typ.) (透射) |
| 颜色(Color) 262K/16.7M (6-bit / 8-bit) |
| 色彩饱和度(Color Saturation) 262K/16.7M , 70% NTSC |
| 响应时间(Response) 10/15 (Typ.)(Tr/Td) ms |
| 可视角度(Viewing Angle) 85/85/85/85(上/下/左/右) |
| 最佳视角(The Best View) 6 o'clock |
| 白场色度(White Field Chroma) Wx:0.310; Wy:0.330 |
| 白场变动(White Field Dynamic) 1.25/1.33 (Typ./Max.)(9 points) |
| 扫描频率(Scanning Frequency) 60Hz |
| 反转扫描(Reverse Scan) 翻转 (水平/垂直) |
| 信号类型大类(The kind of Singnal) LVDS (1 ch, 6/8-bit) |
| 接口类型(Interface) LVDS (1 ch, 6/8-bit) |
| 信号接口定义(Singnal Interface Definition) LVDS (1 ch, 6/8-bit) |
| 驱屏电压(Drive-screen voltage) 3.3V (Typ.) |
| 面板输入电流(Input Current) 4/2/0.2/0.2mA (ICC/IAVDD/IGH/IGL) |
| 信号接口类型(Kind of Singnal Interface) 包含在屏信号接口中 |
| 信号接口品牌(Brand of Singnal Interface) 端子 |
| 信号接口脚距(Pitch of Singnal Interface) 0.5 mm |
| 信号接口数量(Quantity of Singnal Interface) 1 pcs |
| 信号接口脚数(Pin of Singnal Interface) 40 pins |
| DJ101IA-07A结构参数 |
| 工作温度(Operation Temperature) -30 °C ~ 85 °C |
| 存储温度(Storage Temperature) -40°C ~ 90°C |
| 表面处理(Surface Technology) 雾面 |
| 显示区域(Active Area) 226.68(H) × 128.82(V) |
| 可视区域(Display Area) 223.68(H) × 125.82(V) |
| 外形尺寸(Outline) 238.6(H) × 148(V)×9.70 mm |
| 触摸屏(Touch Panel) 无 |
| 灯管位置(Lamp Position) 侧入式光源 |
| 背光类型(Backlight) WLED |
| 灯管数量(Lamp Number) 3S9P pcs |
| 灯管形状(Lamp Shape) 阵列 |
| 背光寿命(Life Time of Lamp) 40K Hours |
| 单一灯管电压(Voltage of Lamp) 22.6/27.2V (Min./Max.) |
| 单一灯管电流(Current of Lamp) 288mA (Typ.) |
| 内置灯管驱动器(Driver of Backlight) 无 |
| 背光接口类型(Kind of Backlight Interface) 包含在屏信号接口中 |
| 背光接口品牌(Brand of Backlight Interface) Includedinsignalinterface |
| 背光接口数量(Quantity of Backlight Interface) 1 pcs |
| 背光接口脚距(Pitch of Backlight Interface) 0.5 mm mm |
| 背光接口定义(Backlight Interface Define ) |
| DJ101IA-07A包装及生产状态 |
| 每箱数量(Quantity Per Box) 26 pcs |
| 包装箱尺寸(Size of the Box) 620×345×240MM (长×宽×高) |
| 包装箱毛重(G.W. of the Box) 10.40 KG |
| 开始量产时间(Date Begin Producing) 2009/12/2 |
| 当前生产状态(Production Status) 正常量产 |
【附件下载】：规格书下载
【产品特点】：

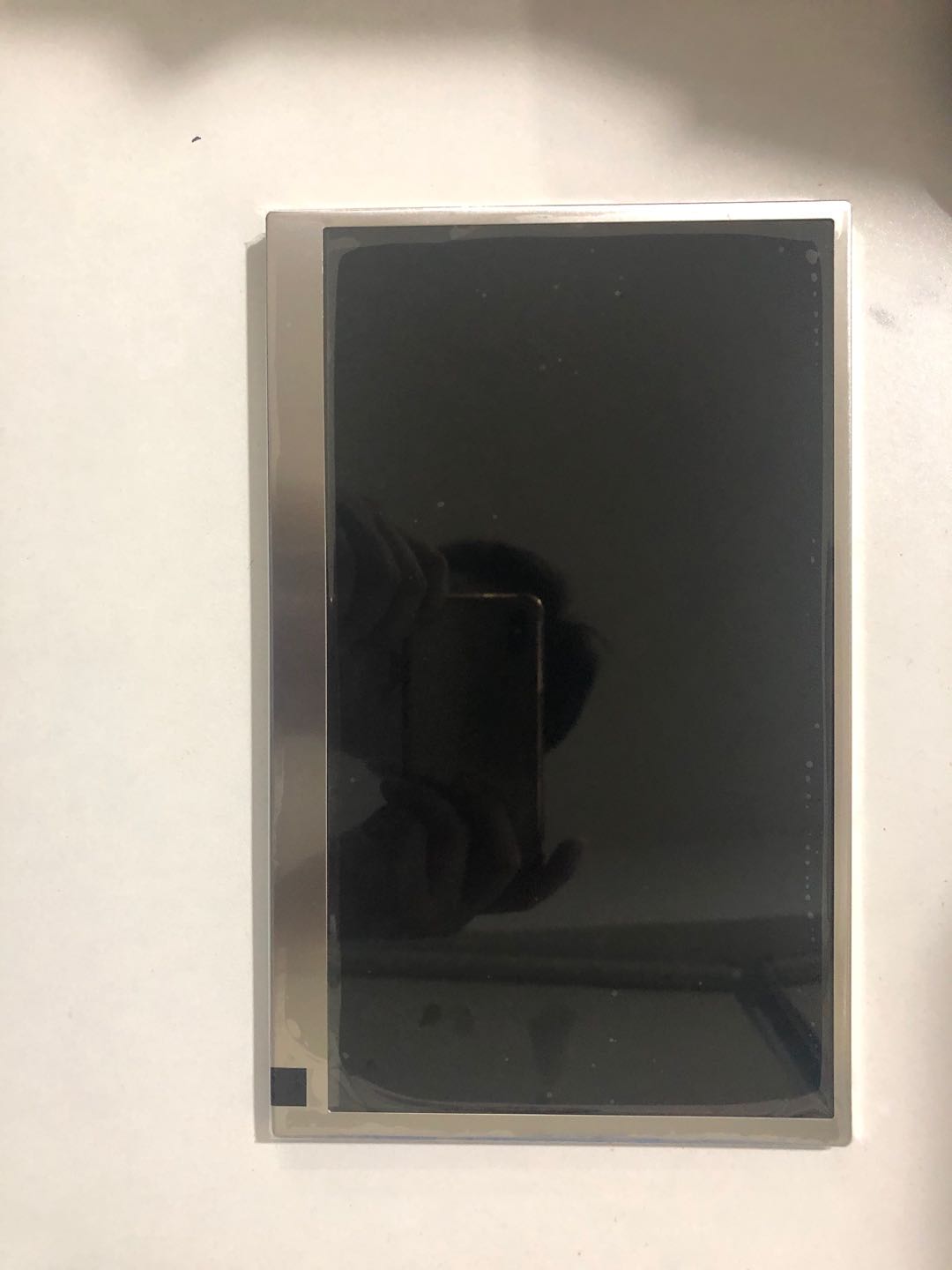

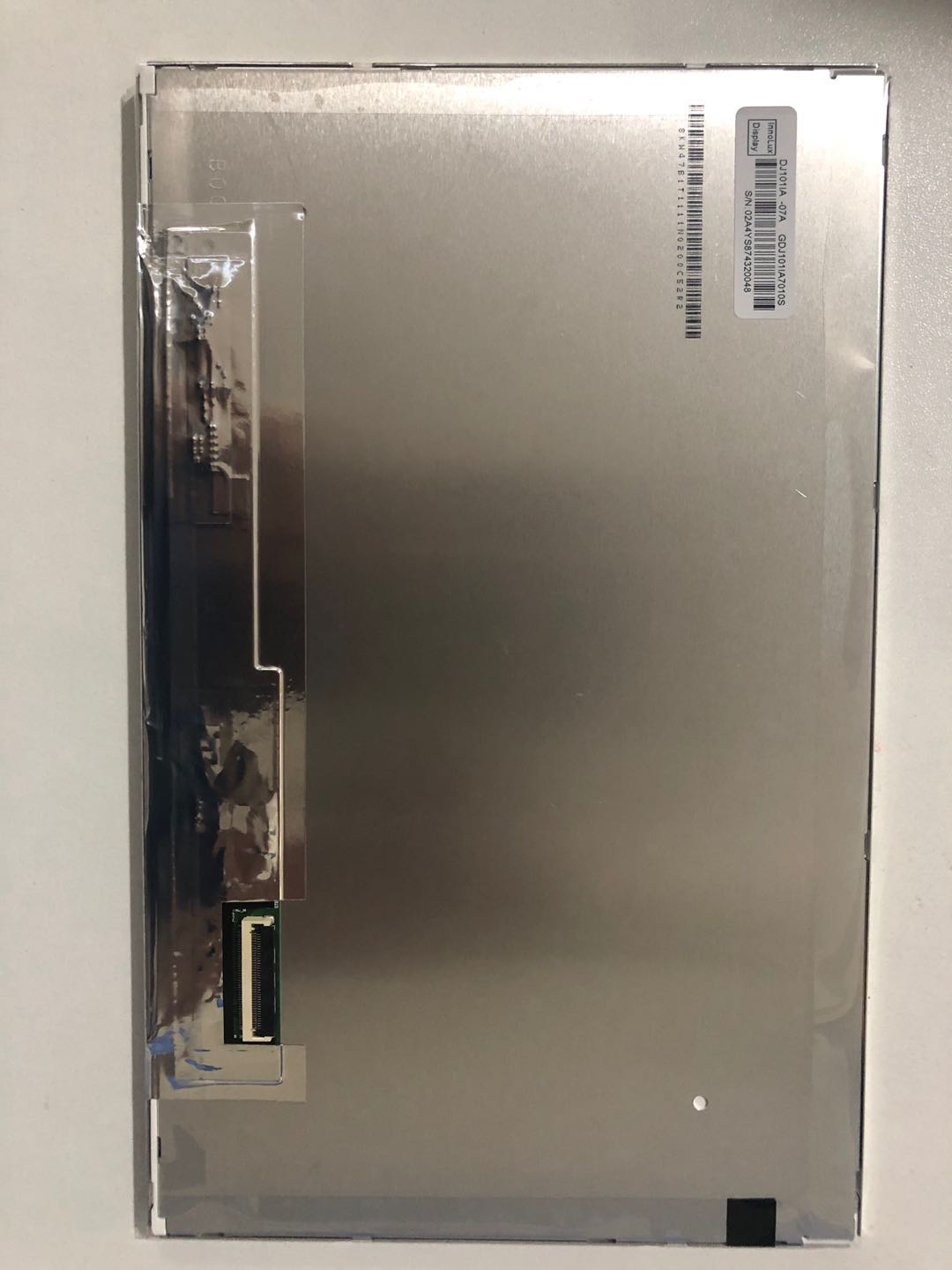

DJ101IA-07A is a 10.1-inch Innolux original LCD module product mainly promoted by Shenzhen Zhiyuan Optoelectronic Technology Co., Ltd., which adopts a-Si TFT-LCD technology. It is equipped with WLED backlight, no backlight drive and no touch. As an AAS, normally black display, transmissive liquid crystal module product, DJ101IA-07A can provide a display brightness of 750 CD/m, a transmission contrast of 1000:1, and a viewing angle of 85/85/85 (typ.) (Cr ≥ 10) (L/R/U/D), and the best viewing angle is full. Because each pixel adopts 6-bit/8-bit gray-scale signal, this product can display 262K/16.7M color, and its color saturation has reached 70% (NTSC). For backlight, this product adopts WLED side-entry light source, and the service life of the light source is 20K hours, excluding backlight drive. DJ101IA-07A adopts LVDS (1 ch, 6/8-bit) signal interface, with a total of 40 pins, terminal connection and screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. If you want to adopt DJ101IA-07A LCD module in developing new products, it is recommended that you ask Innolux or its agents for the latest production status information and technical information about DJ101IA-07A. Please refer to the specification! According to the information held by Screen Library, this product was mass-produced in Q3 2015, and the current production status is in mass production. It belongs to the main model products traded in the screen library market at present. The parameters of this model were first established on June 18th, 2015, and finally updated on August 11th, 2023. Its working temperature is-30 ~ 85 C, storage temperature is-40 ~ 90 C, and its vibration resistance is 1.5g (14.7m/s). Based on its wide temperature, high brightness, white LED backlight, up/down, left/right flip display, 6/8 gray scale optional, foggy surface and other characteristics, this model is recommended for outdoor highlight, vehicle display, automobile central control, military industry, wide temperature environment and other products.
